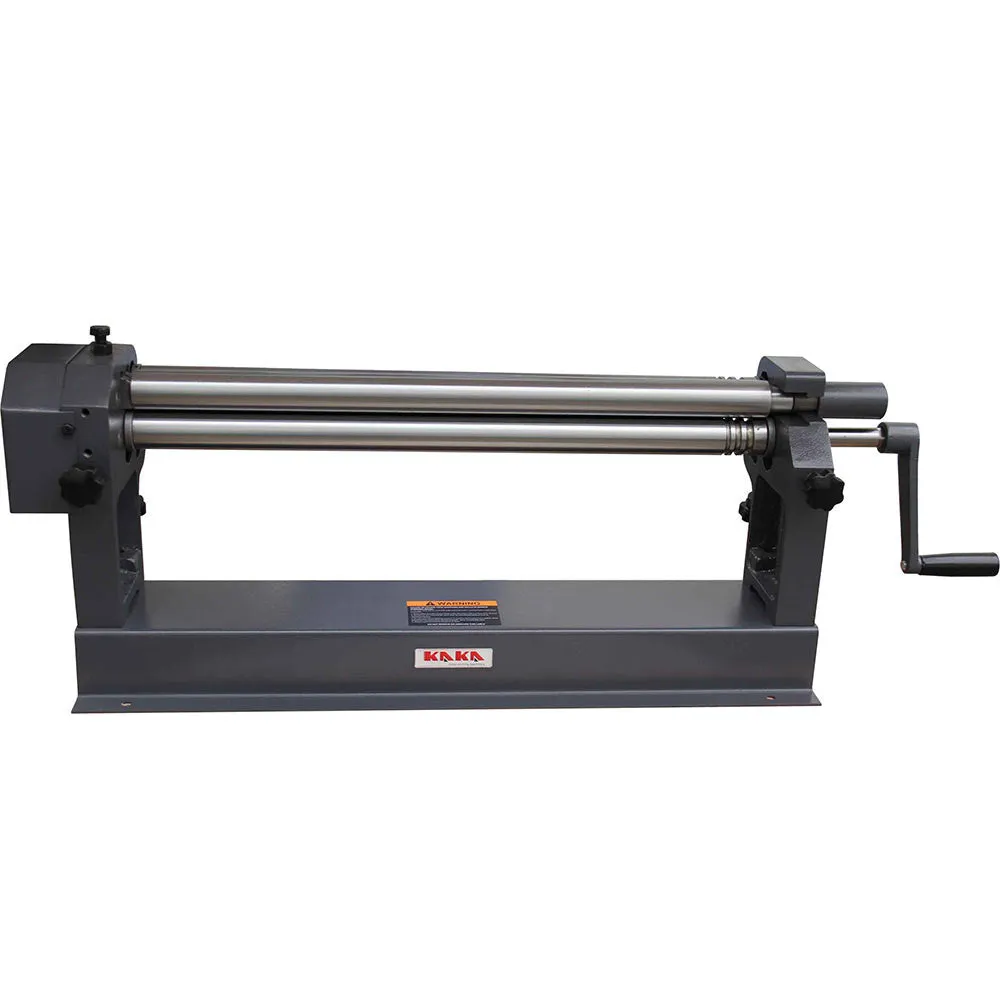

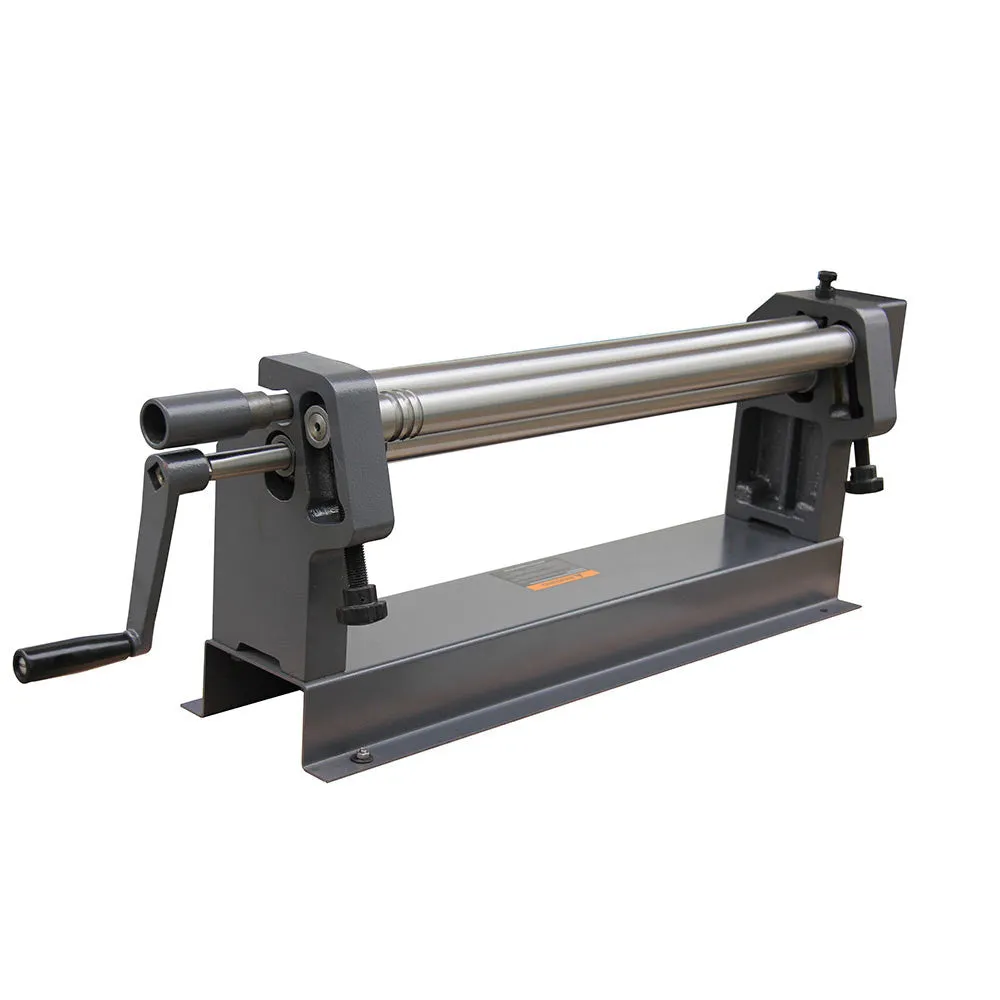

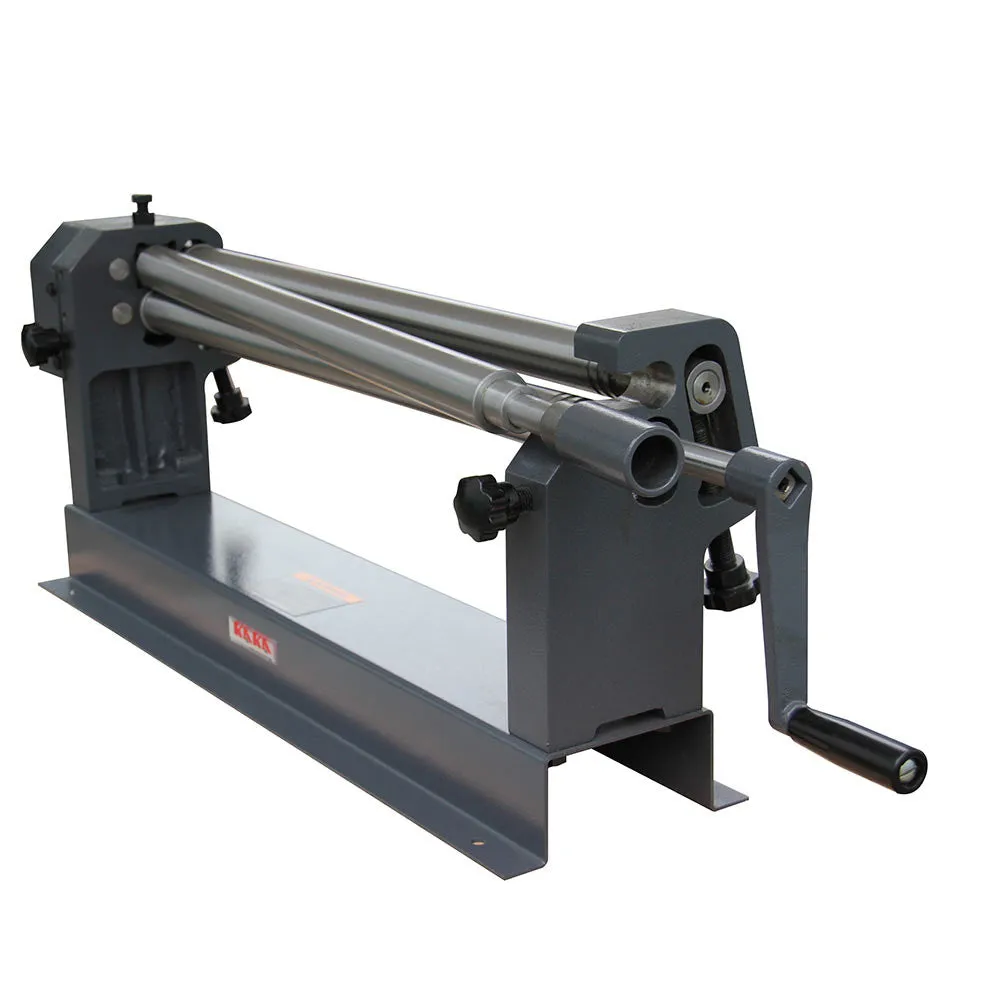

Kaka Industrial 24" Slip Roll Overview
KAKA Industrial 24" Slip roll machine can satisfy customers who want a little extra capacity over the 12" slip roll. Large handle crank and hardened, heavy-duty gearing give you the mechanical advantage to roll mild steel up to 22 gauges. The slip roll also features a quick-release top roller and bushings found on larger slip rolls.
Key Benefits of 24-Inch Slip Roll
1. Easy and manual operation.
2. Quick release top roller
3. Hardened steel gearing
4. High strength steel rolls
5. Precision ground cast iron roller

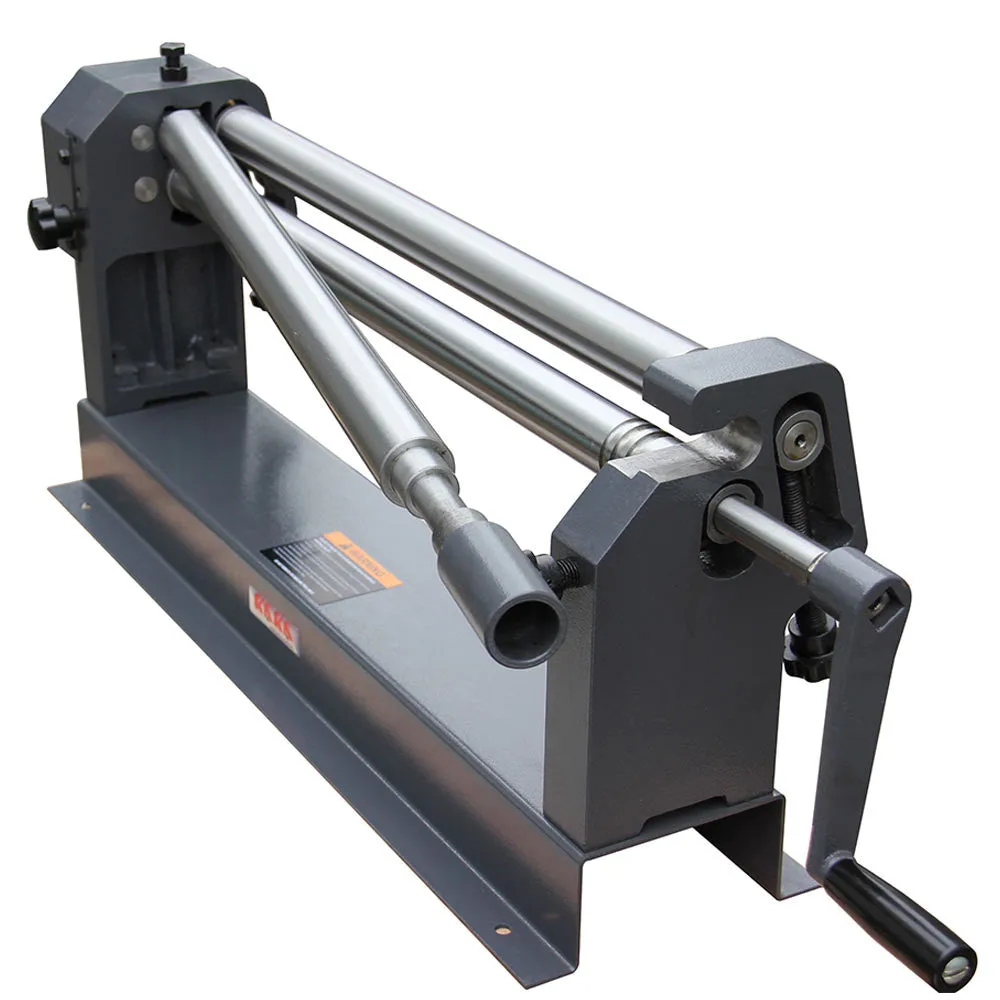

6. Top roll swing-out
7. Lower roll adjustment with adjustment lever and cam
8. The processing capacity of the slip roll machine ranges from 305mm to 1300 mm
9. Our slip roll machine not only reels but can also cone the materials
10. Our slip roll machine can roll the round bar steels whose specifications are ￠6, ￠8, ￠10 and so on.
11. The upper axis of our slip roll machine can be easily pulled out in order to take out the processed workpiece
Specification:
|
ITEM NO. |
Model |
Max.thickness |
Max.width (in) |
Dia.of roll(in) |
Packing dimension (in) |
N.W./G.W.(lb) |
|
174002 |
W01-0.8X610 |
22gauge |
24" |
1-1/2" |
37x10x15 |
81/88 |
